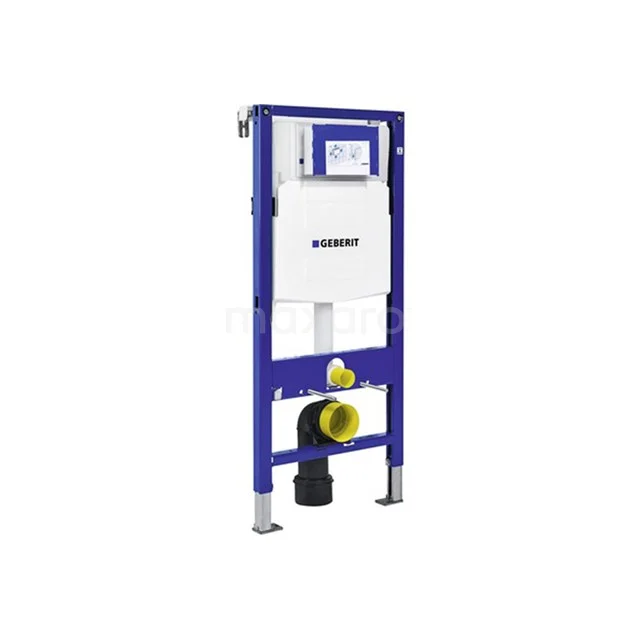

Toilet concealed cistern Geberit Duofix Sigma UP320

911011087

Toilet concealed cistern Geberit Duofix Sigma UP320

911011087

234,-
Ordered before 1 pm, delivered tomorrow
1

Return within 365 days

5 year warranty on this product

Guaranteed the lowest price

Product benefits

The tank is adjustable, allowing you to determine the height of the toilet bowl when installing the toilet.

The extra-long sparging sleeve ensures that dirt and moisture do not enter the flush cistern.

The rinse water volume is adjustable, allowing you to set it lower and thus save water.

Thanks to the impact sound insulation set, the sound of flushing is not easily heard in other rooms.

Product description

The Geberit Duofix Sigma UP320 concealed cistern is an excellent choice for the installation of a wall-hung toilet. It is 50 cm wide, height adjustable by means of the extendable legs and has a minimum installation depth of 14.5 cm.

Suitable for various toilets This self-supporting steel UP320 cistern is suitable for almost any wall-mounted toilet. A big plus of the cistern is that it allows you to determine the height of the toilet at installation. This is because the element is adjustable between 1120 and 1300 mm.

Water-saving In addition, the concealed cistern saves water. After all, you simply set the water quantity for the small and large flush yourself. By setting the quantity lower, you can use water very responsibly. That is good for the environment and your wallet.

Including insulation set and sparer sleeve The concealed cistern comes with a sound insulation set. As a result, the sound of flushing cannot be easily heard in other rooms. In addition, the cistern has an extra-long sparer sleeve. This component prevents dirt and moisture from entering the flush cistern. If necessary, the sparer can be shortened to size.

Front actuation Combine the concealed cistern with a flush plate for front operation. You can choose from all Maxaro and Geberit Sigma flush plates. For optimum hygiene, it is possible to fit the cistern with an integrated toilet block holder. You attach it behind the flush plate. You fill the toilet block holder in no time by clicking the panel forward.

Specifications

i Drainage kit
i Sound decoupling
‒
Inbouwreservoirs_Isolatievermogen
Yes
Supply connection
1/2 inch
Drain pipe diameter
9 cm
Rinse water quantity
3~7,5L
Width
50 cm
Width adjustable
‒
i Adjustable depth
i Minimum installation depth
14.5 cm
Height adjustable
Adjustability
112 - 132 cm
Wire connection
External thread metric
Size male thread
1/2 inch
Materials
Steel
Finish
Powder coating
Series
UP320

Standard included

  • Drain elbow
  • Supply and waste fitting
  • Fixing material for wall closet
  • Element fixings
  • Impact sound insulation set
  • Outlet sleeve
  • Stop valve
  • Specicap
  • Installation instructions
